Working Drawings

This project presents a detailed architectural and working drawing set for a small villa located in SODIC East. The drawings include architectural, structural, and MEP working drawings, covering all design aspects such as floor plans, elevations, sections, HVAC, lighting, power, CCTV, drainage, and water supply systems. Additionally, detailed schedules for doors, windows, materials, and finishes are provided, ensuring full construction documentation.

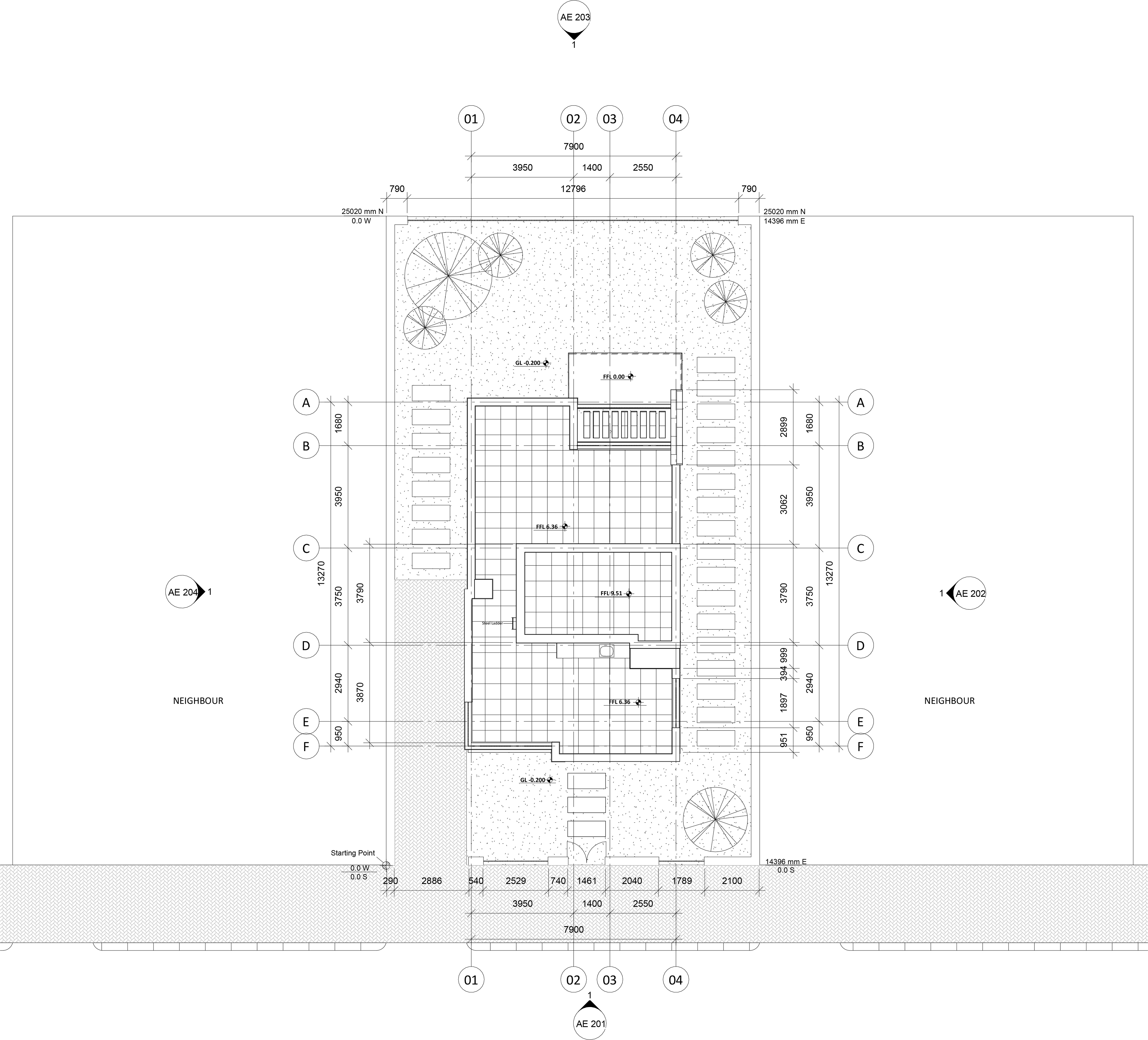

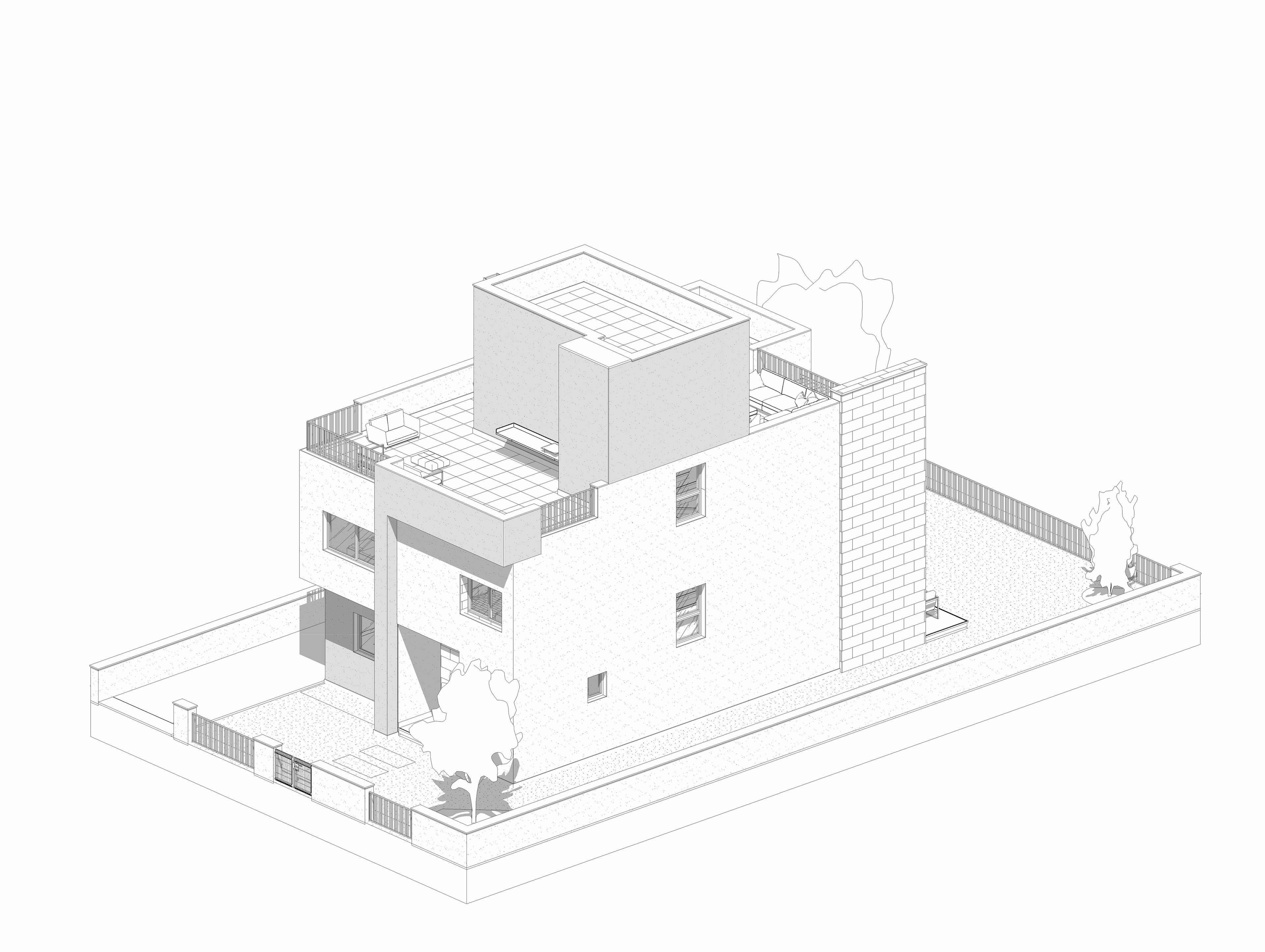

Site Plan

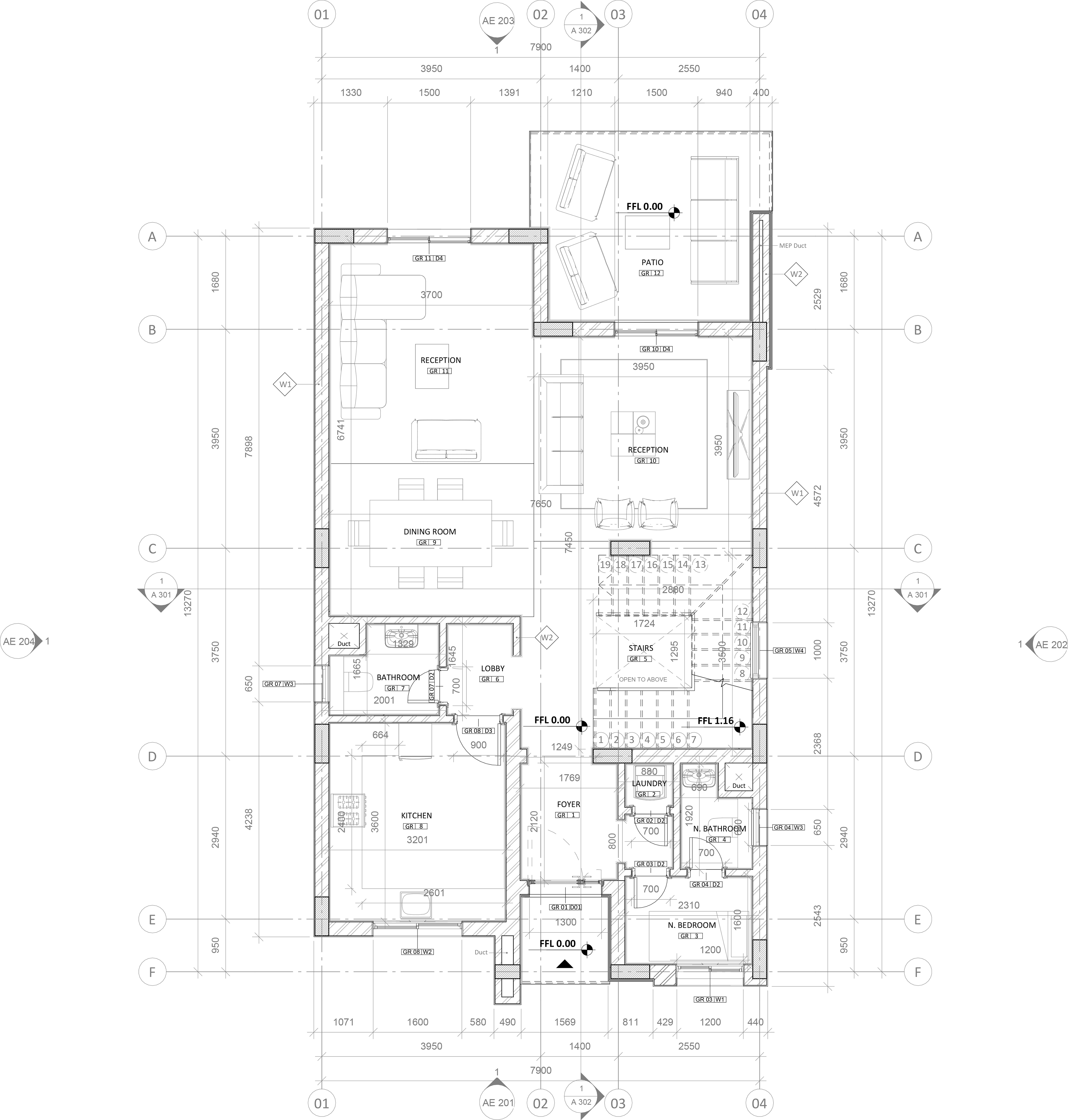

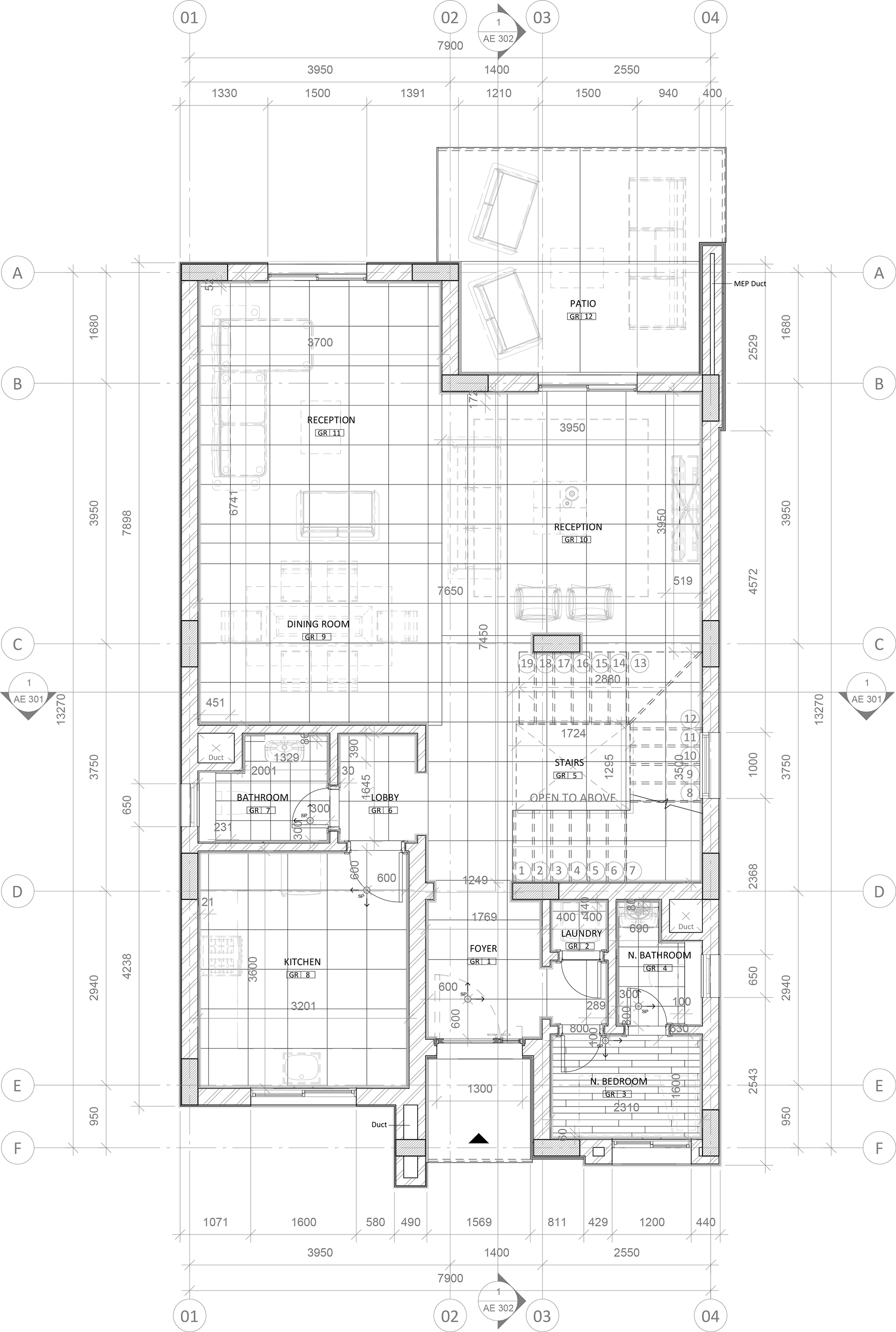

Ground Floor Plan

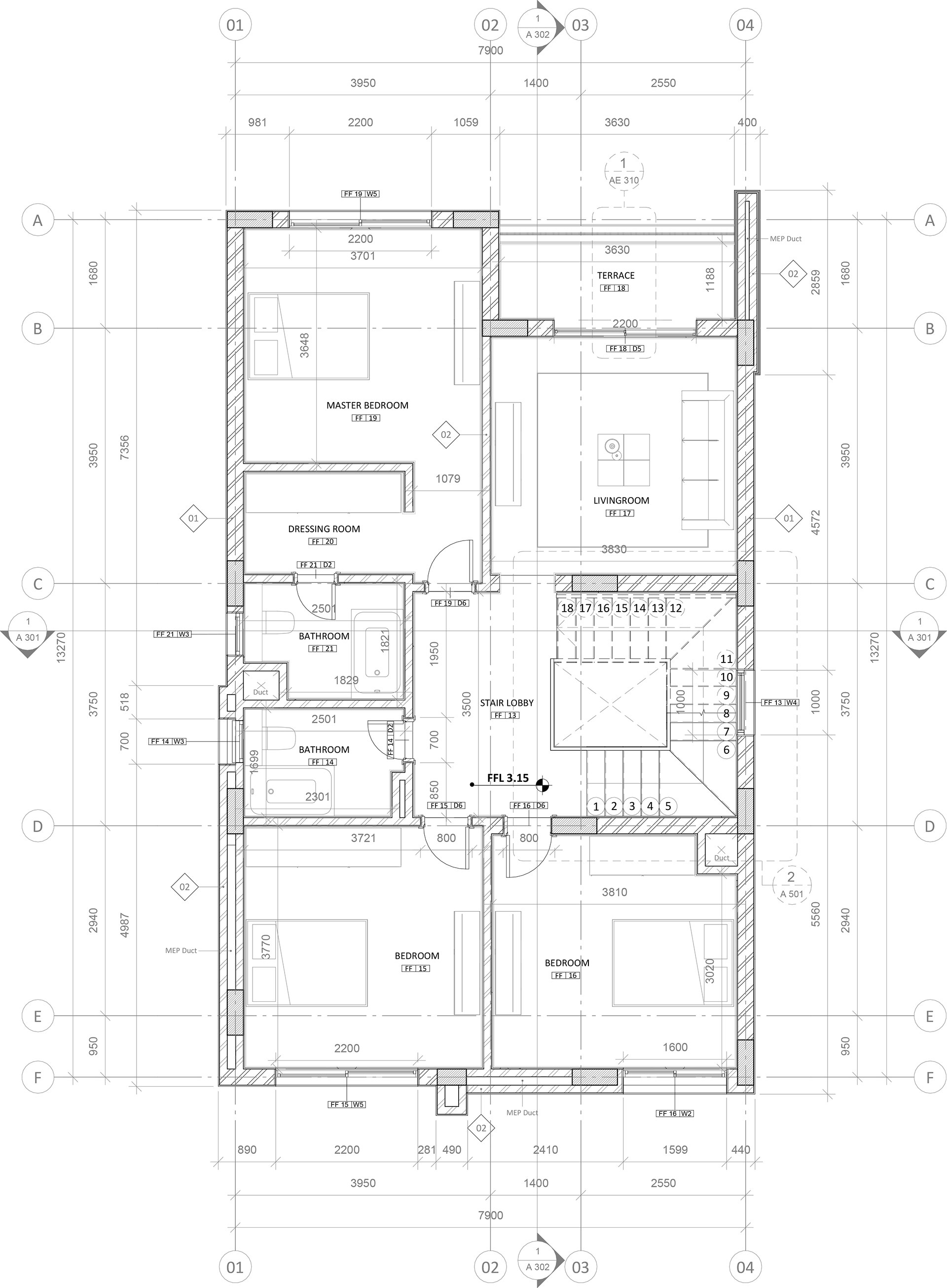

First Floor Plan

Ground Flooring Plan

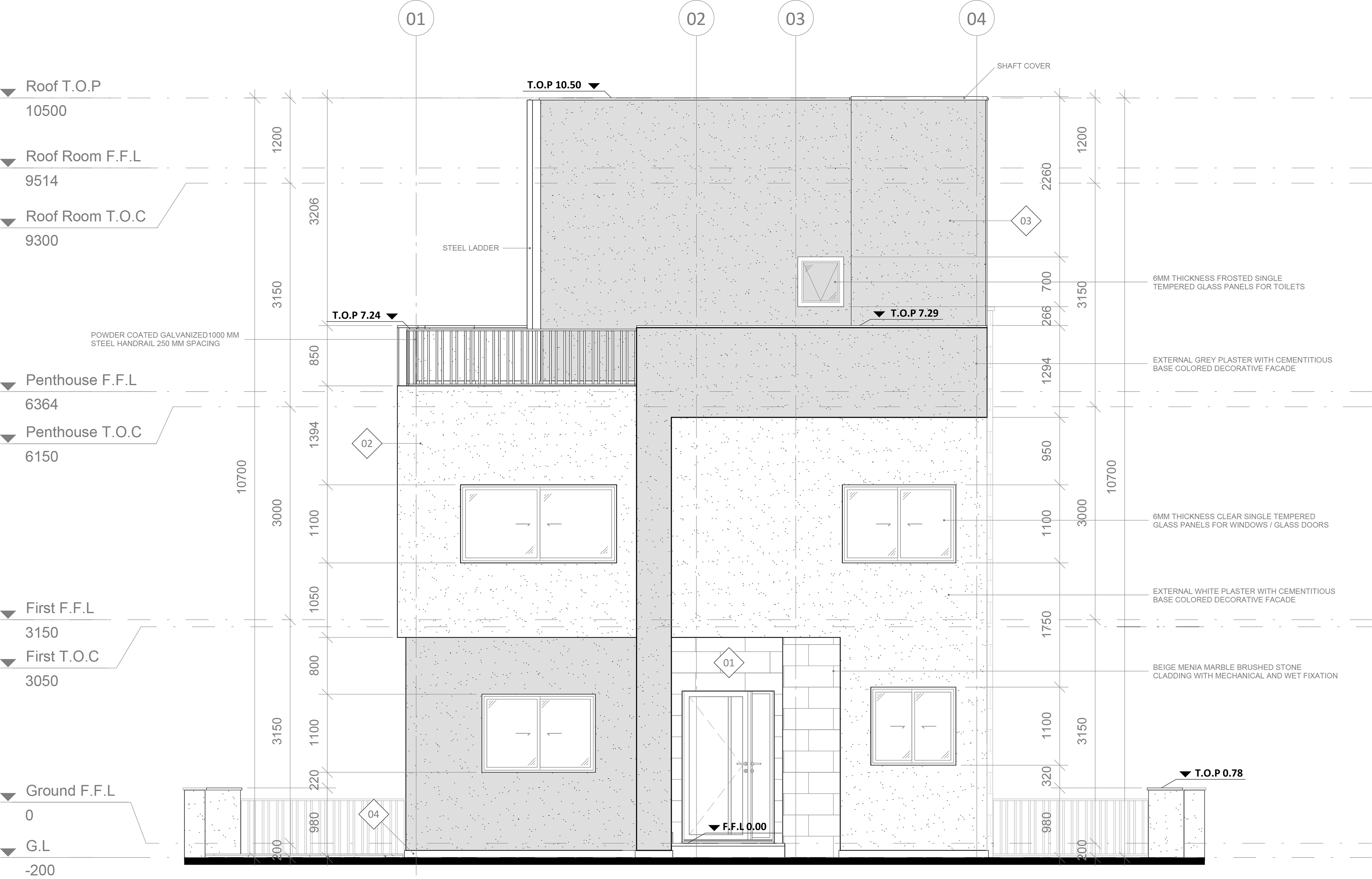

South Elevation

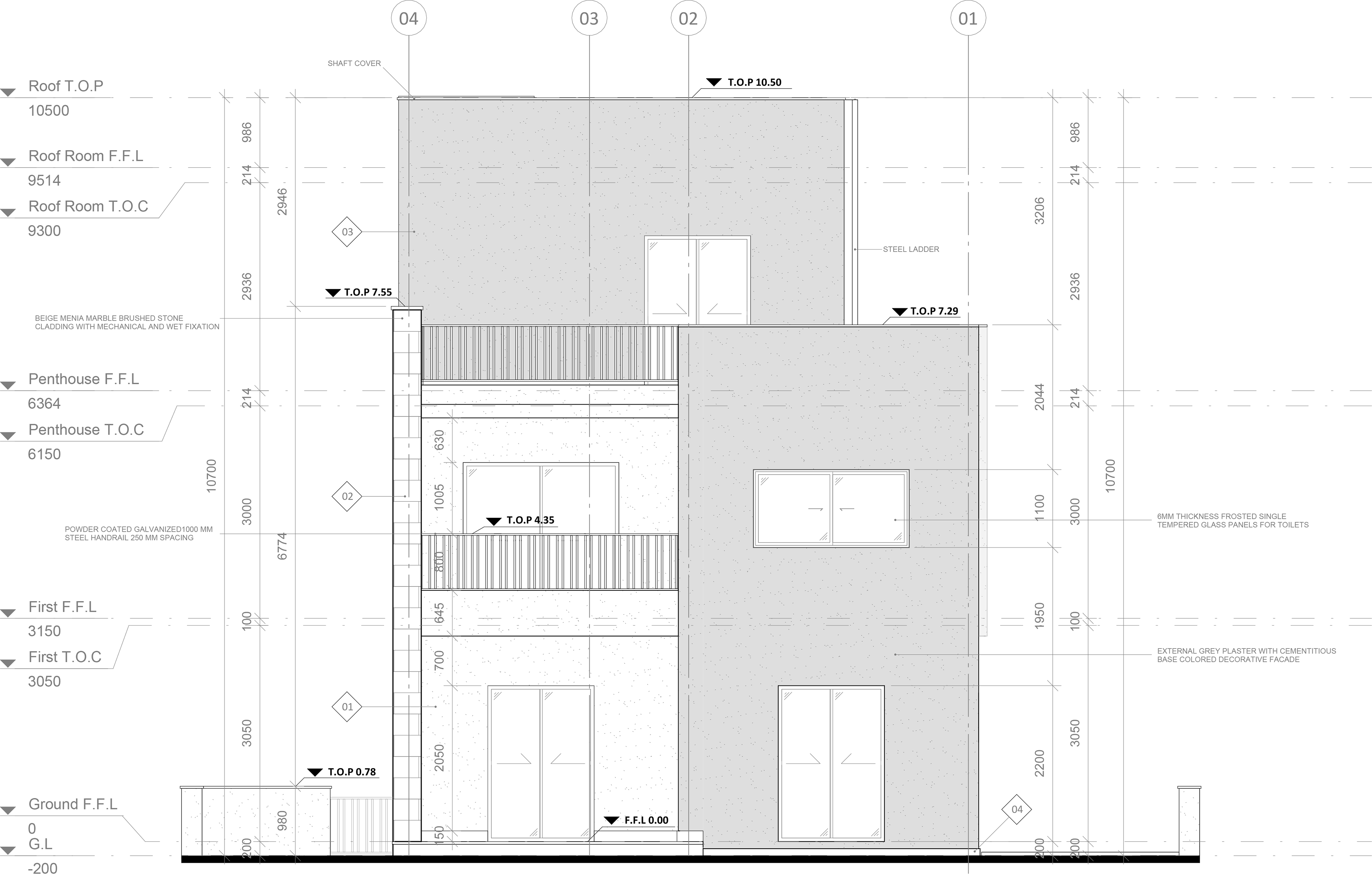

North Elevation

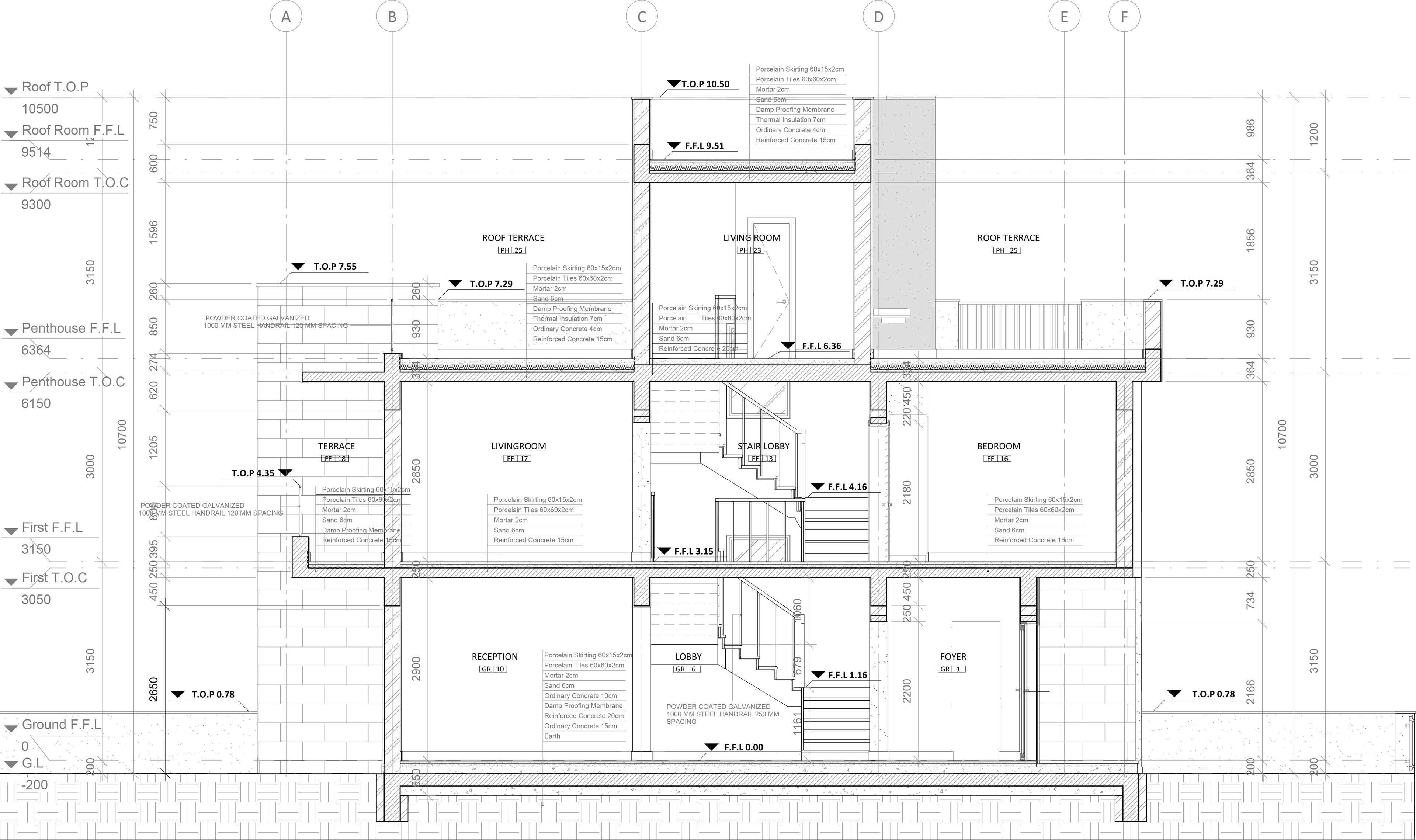

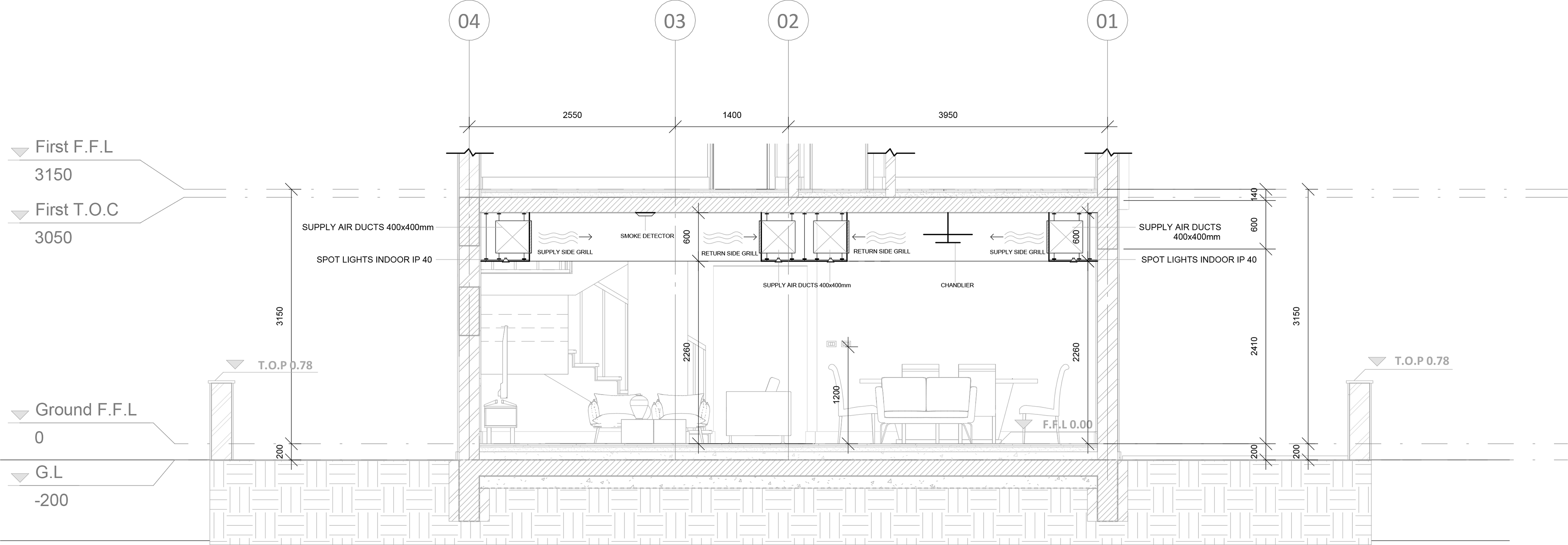

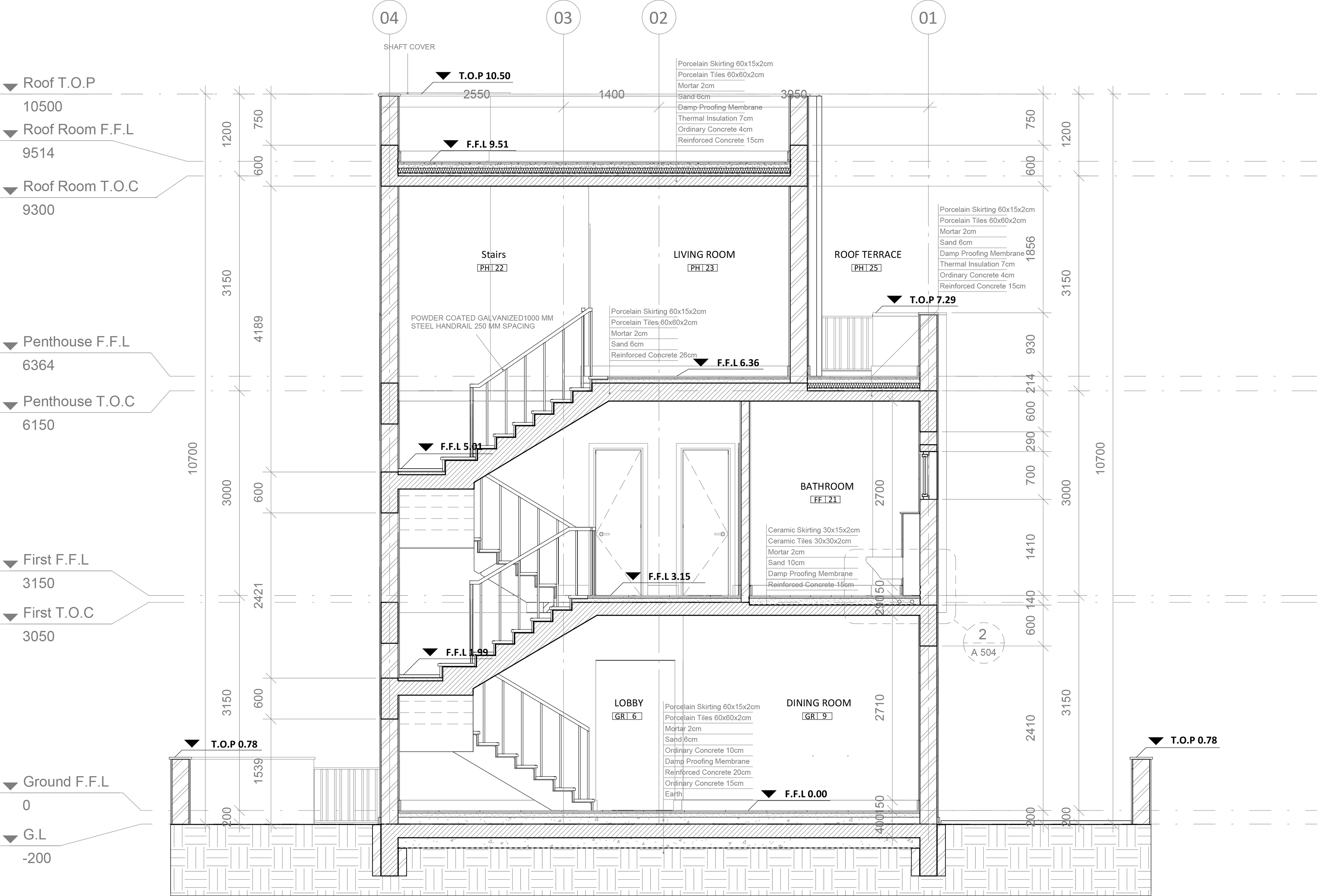

Section AA

Section BB

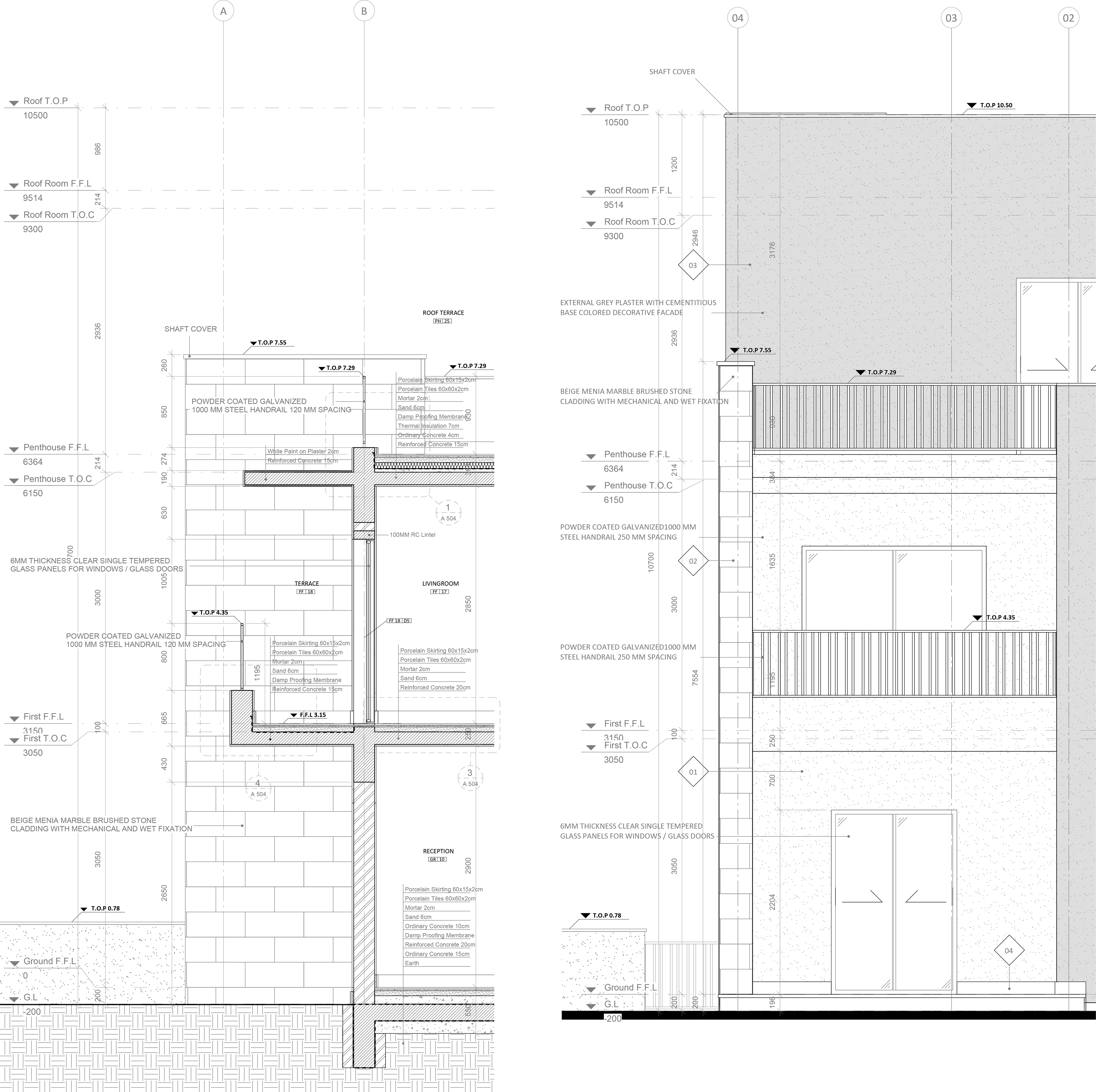

Facade Section & Elevation

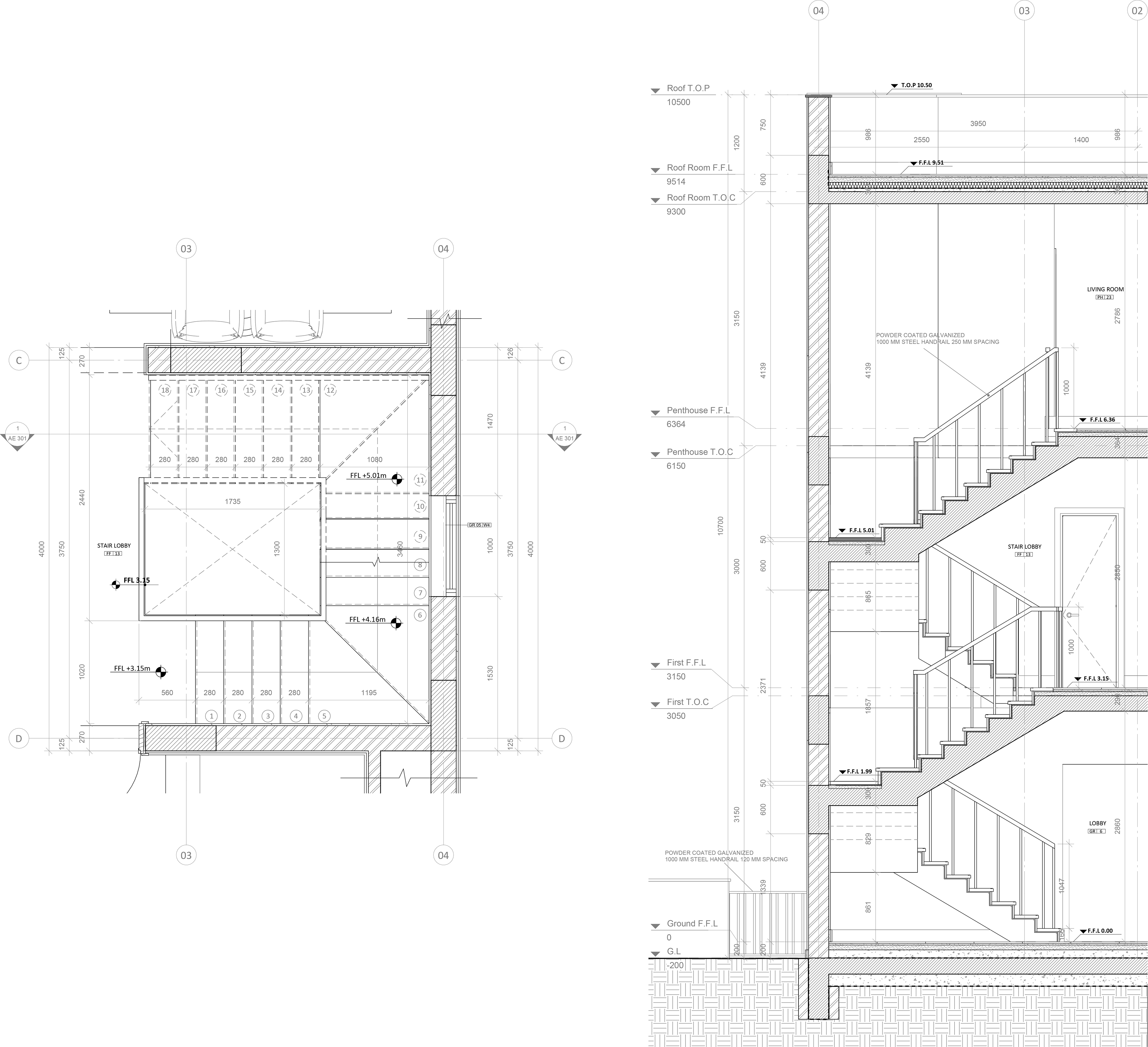

Stair Plan & Section

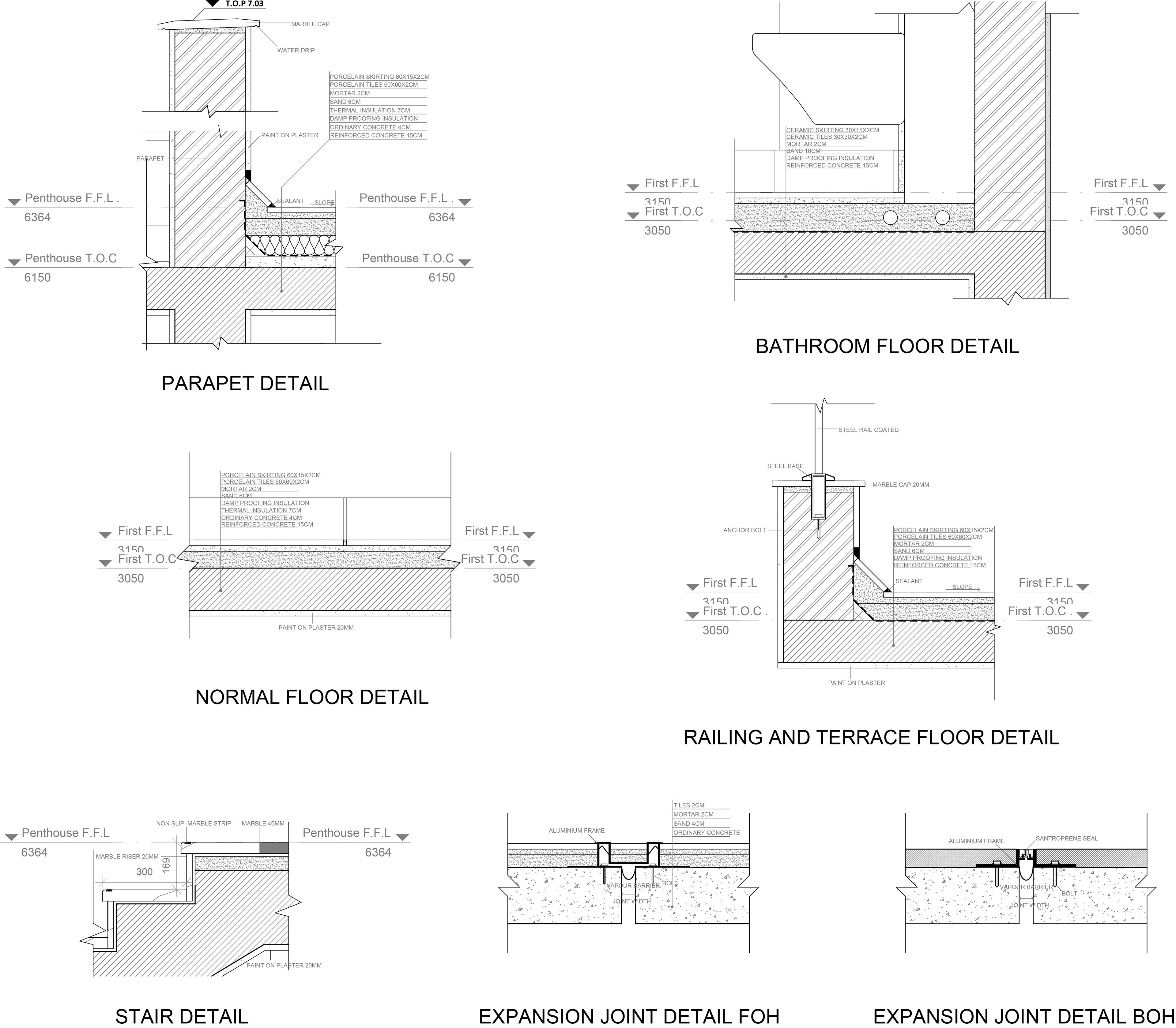

Detail Drawings

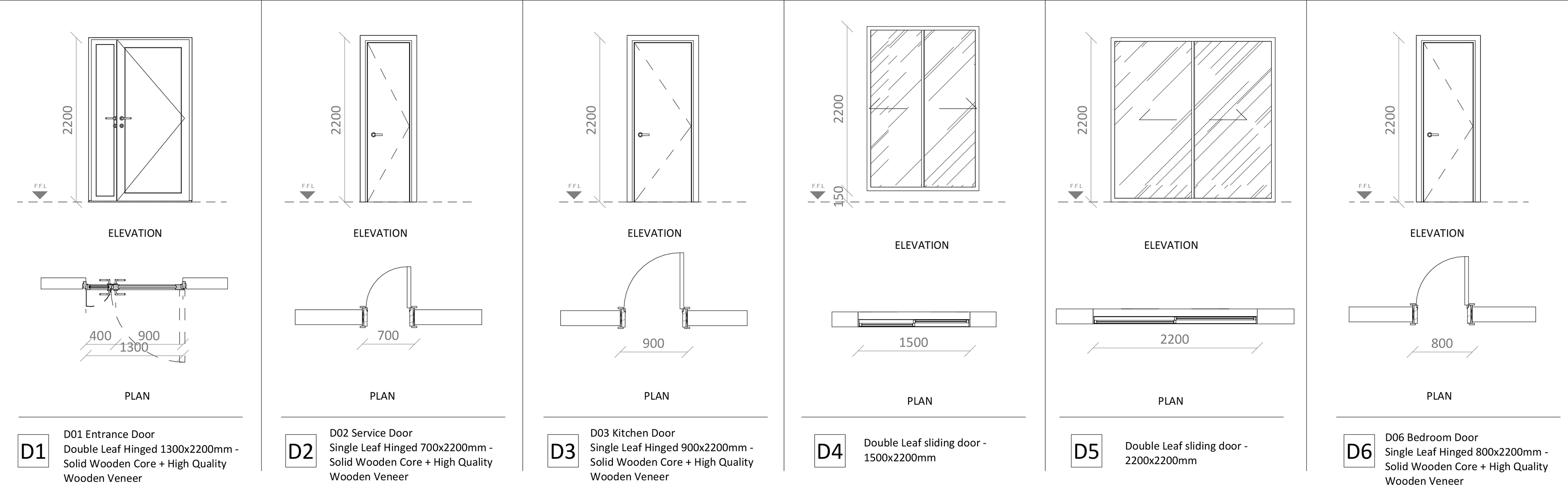

Door Legend

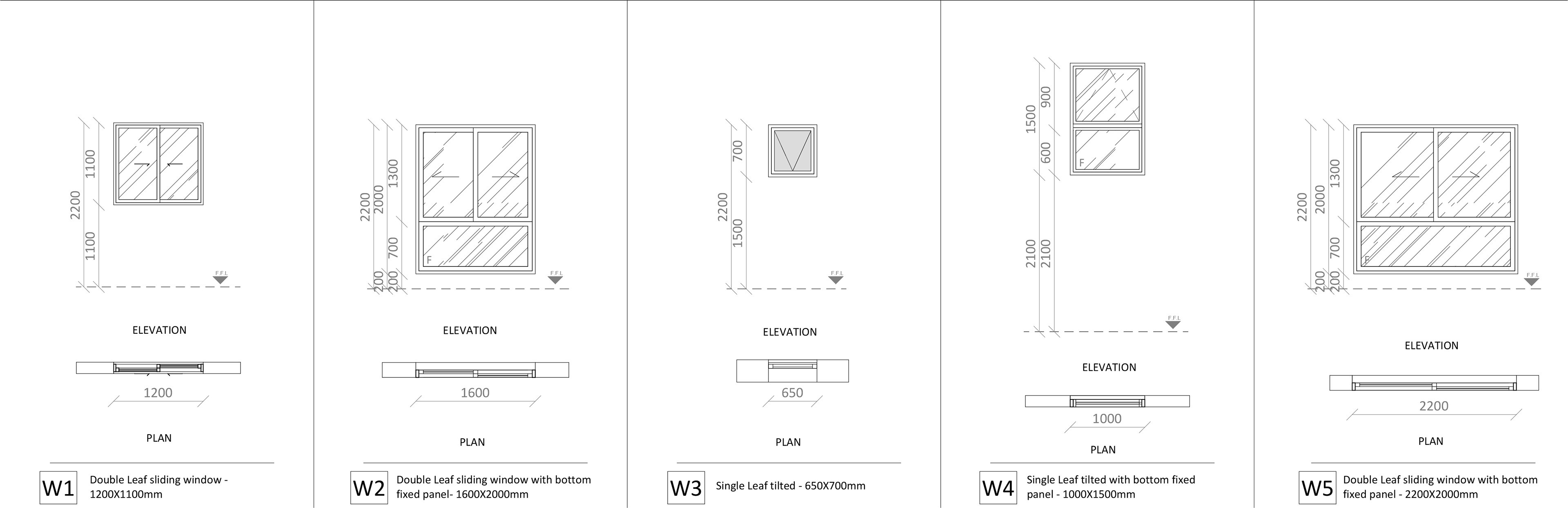

Window Legend

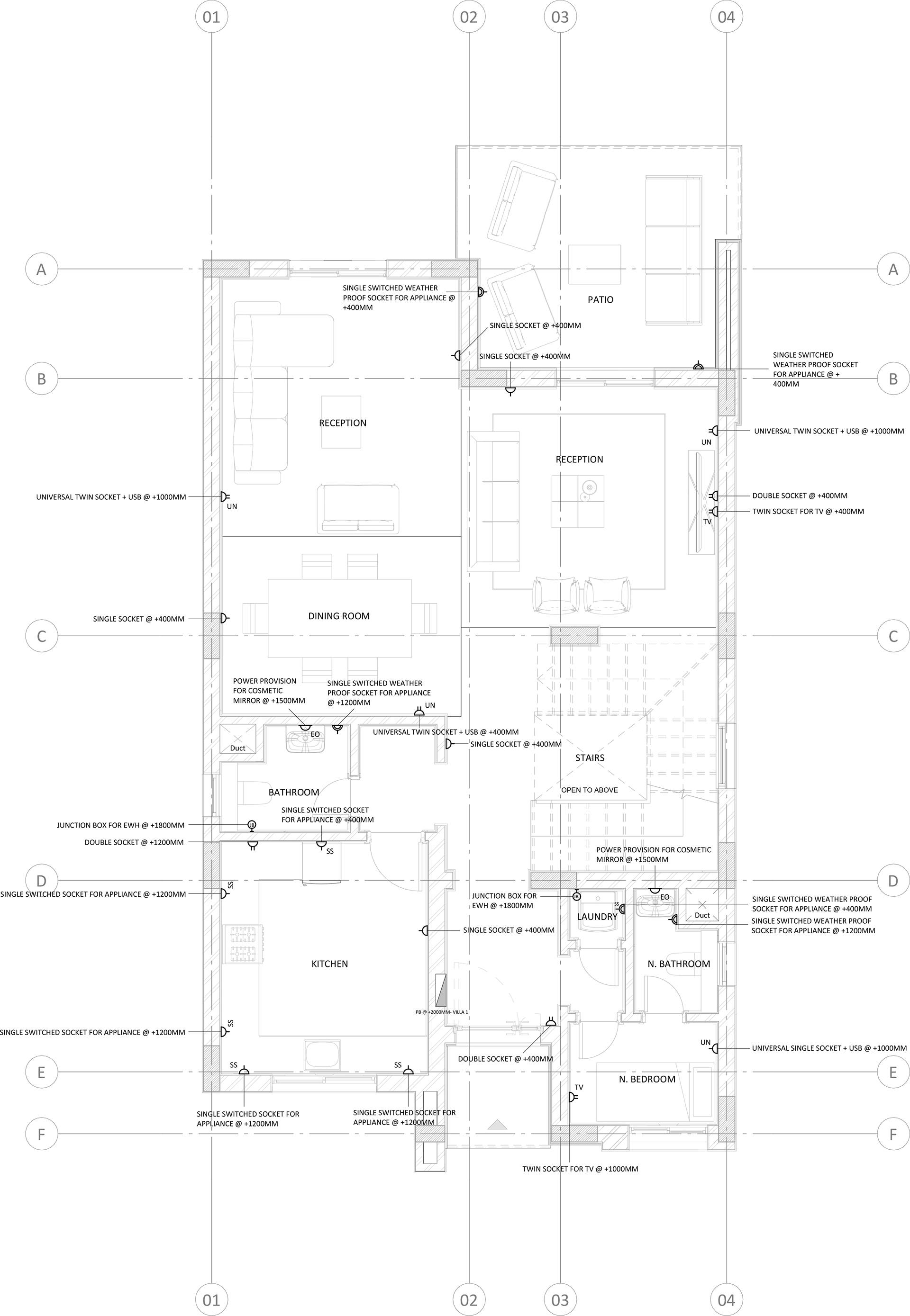

Ground Floor Power Plan

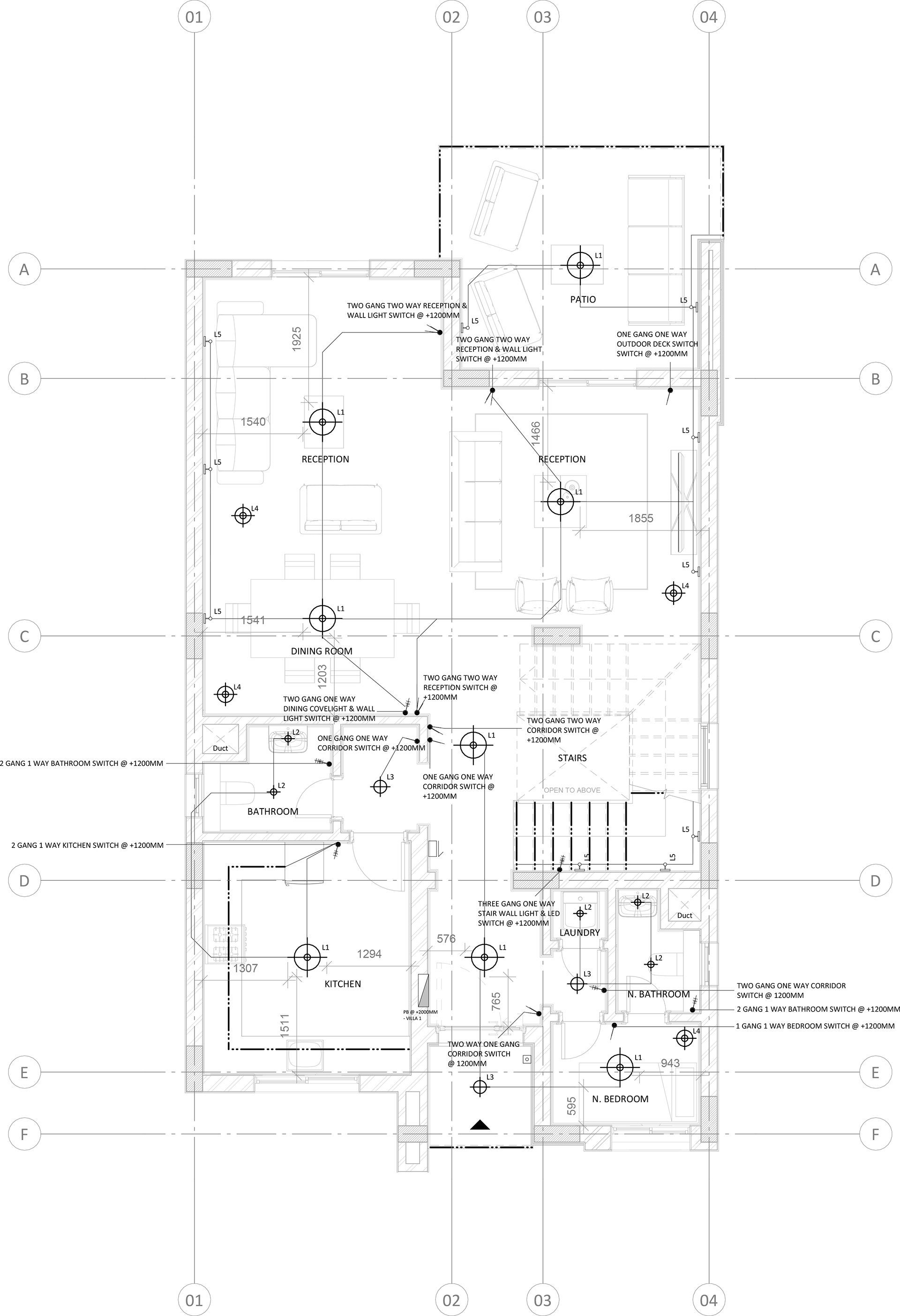

Ground Floor Lighting Plan

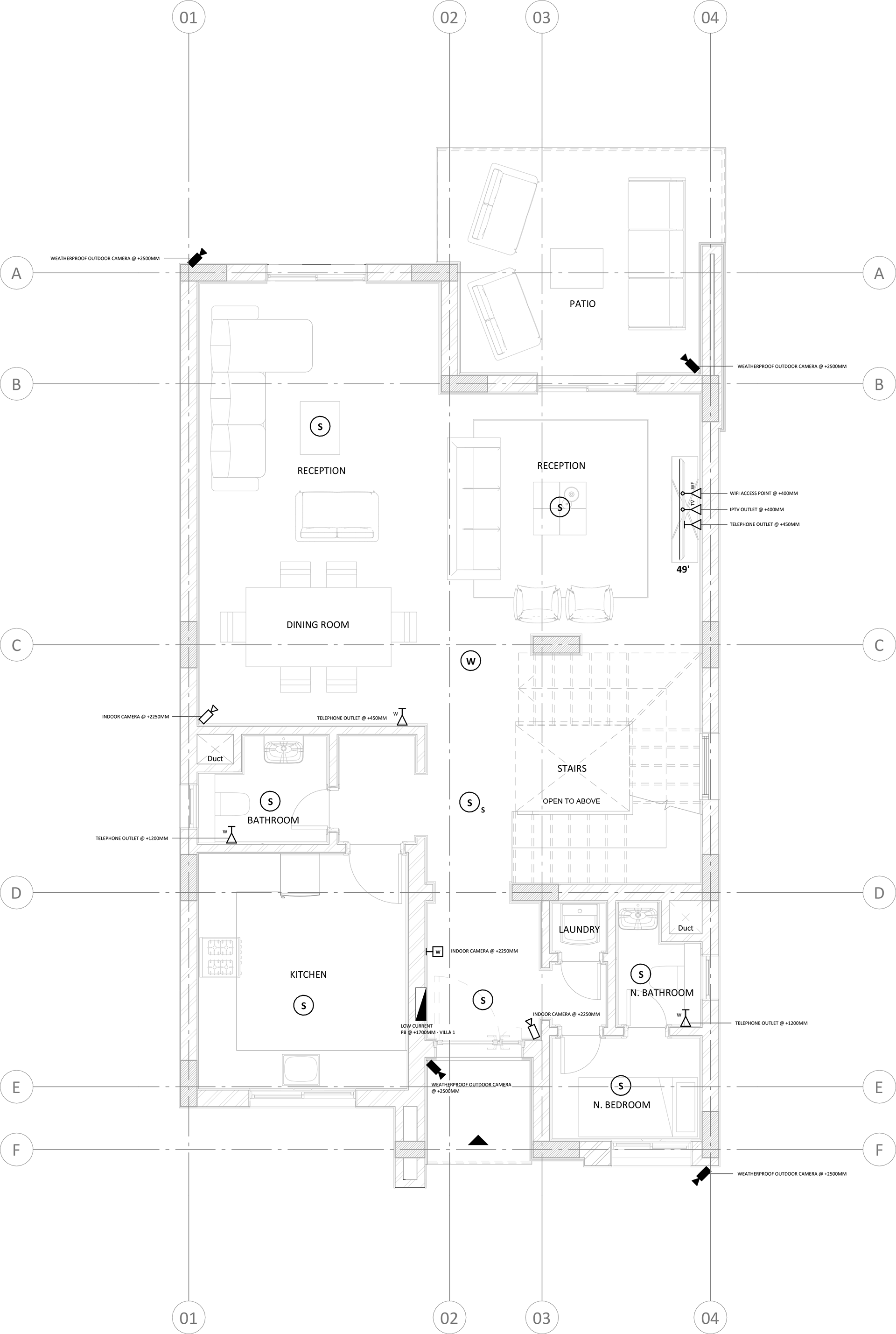

Ground Floor CCTV Plan

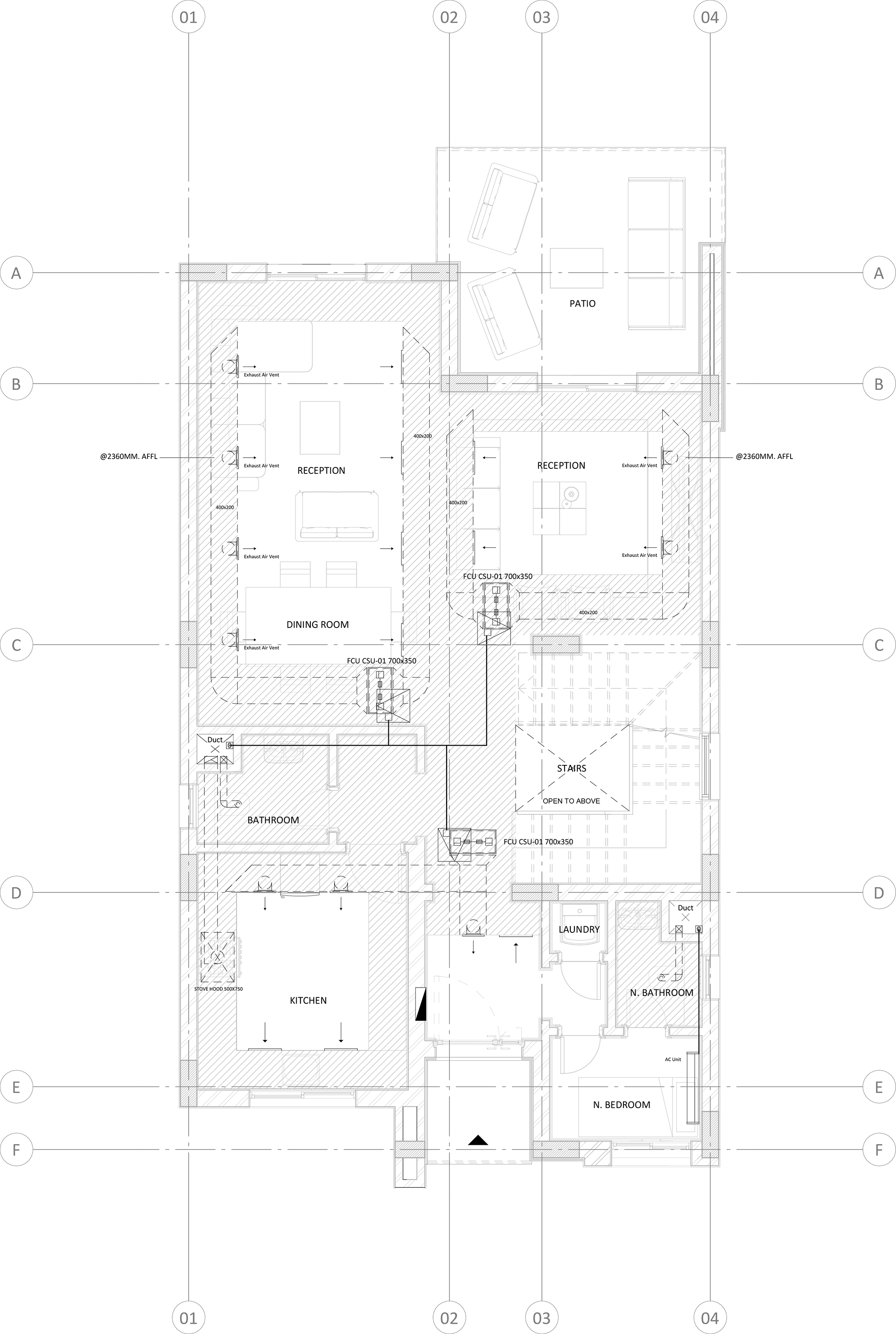

Ground Floor HVAC Plan

Ground Floor Composite Plan

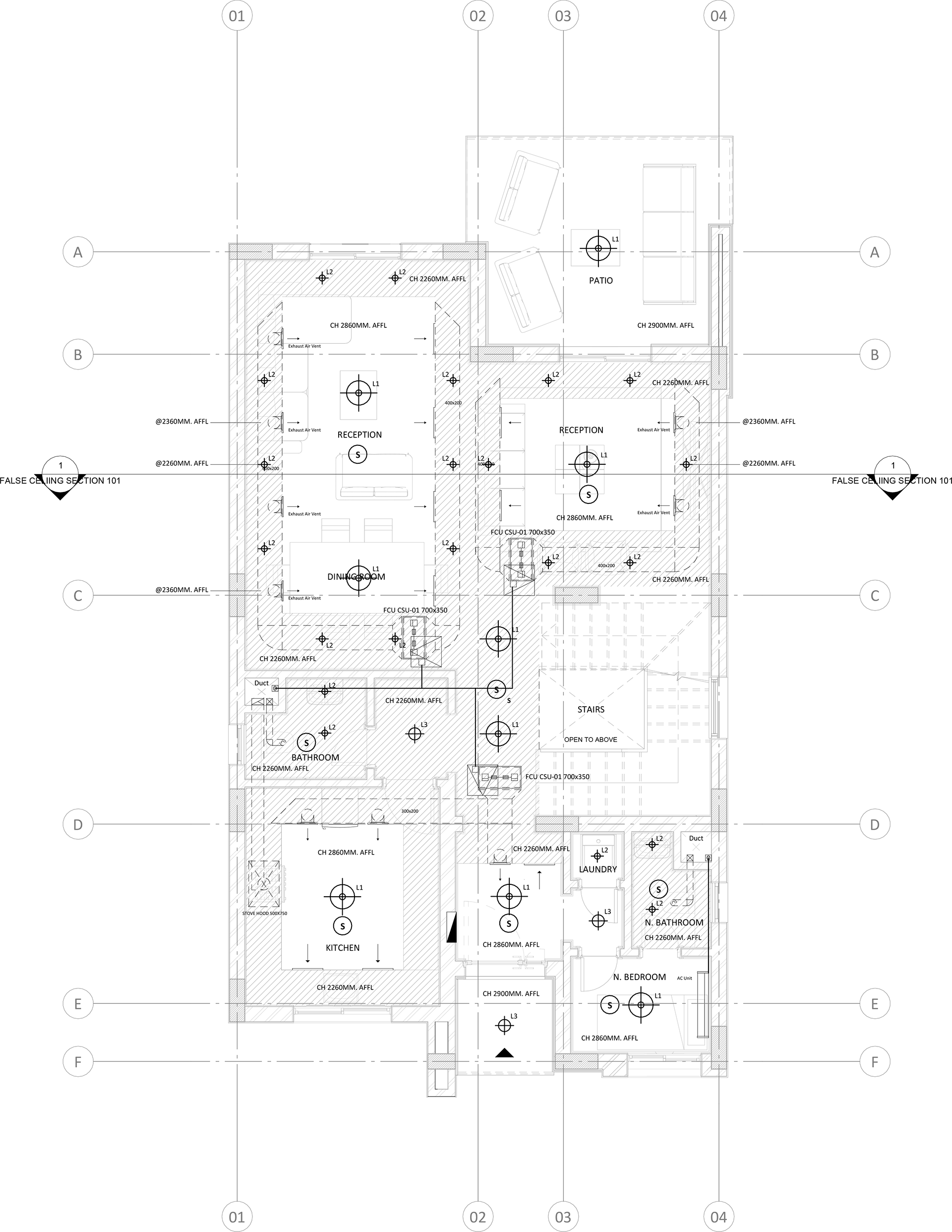

False Ceiling Plan

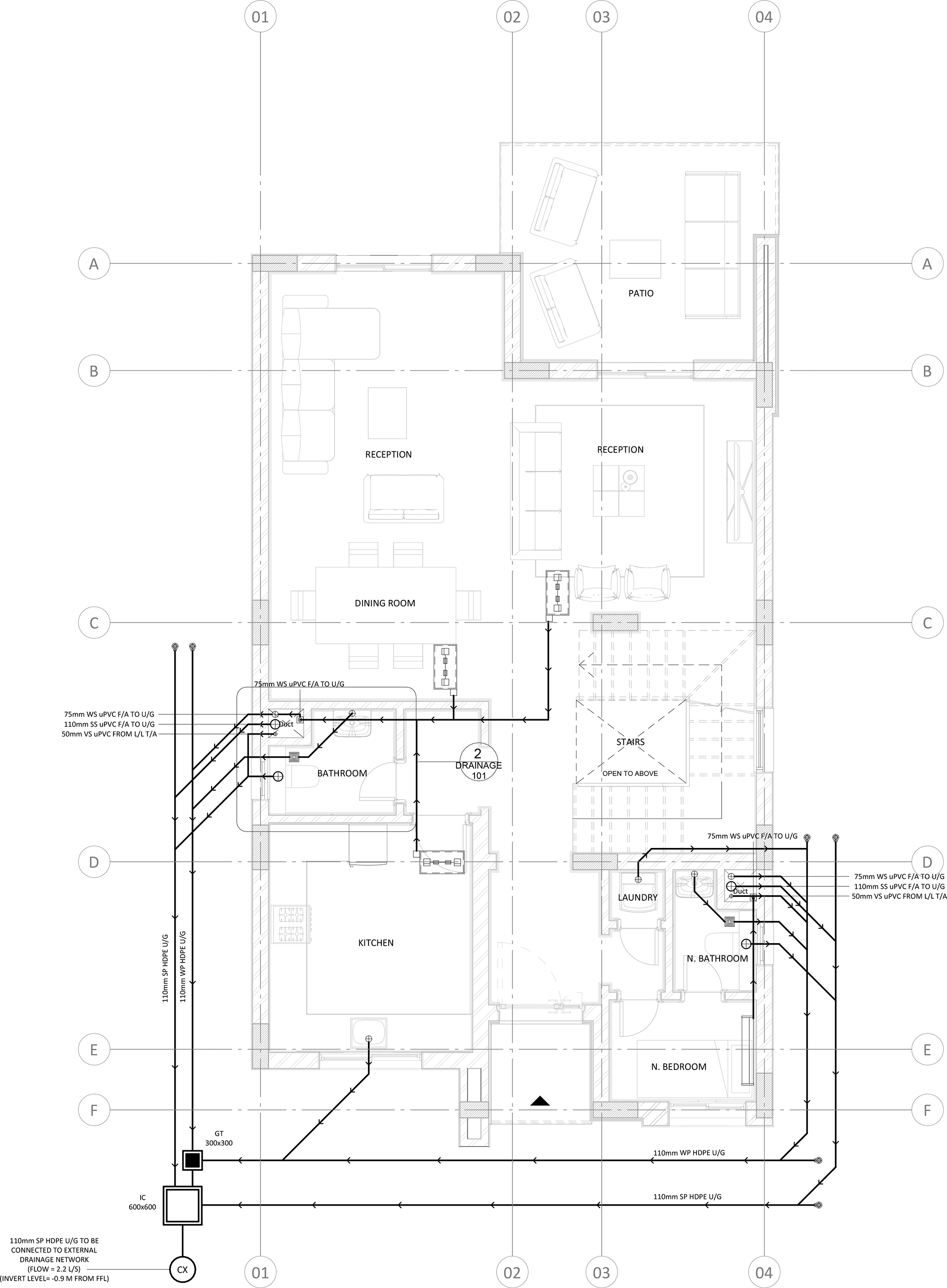

Ground Floor Drainage Plan

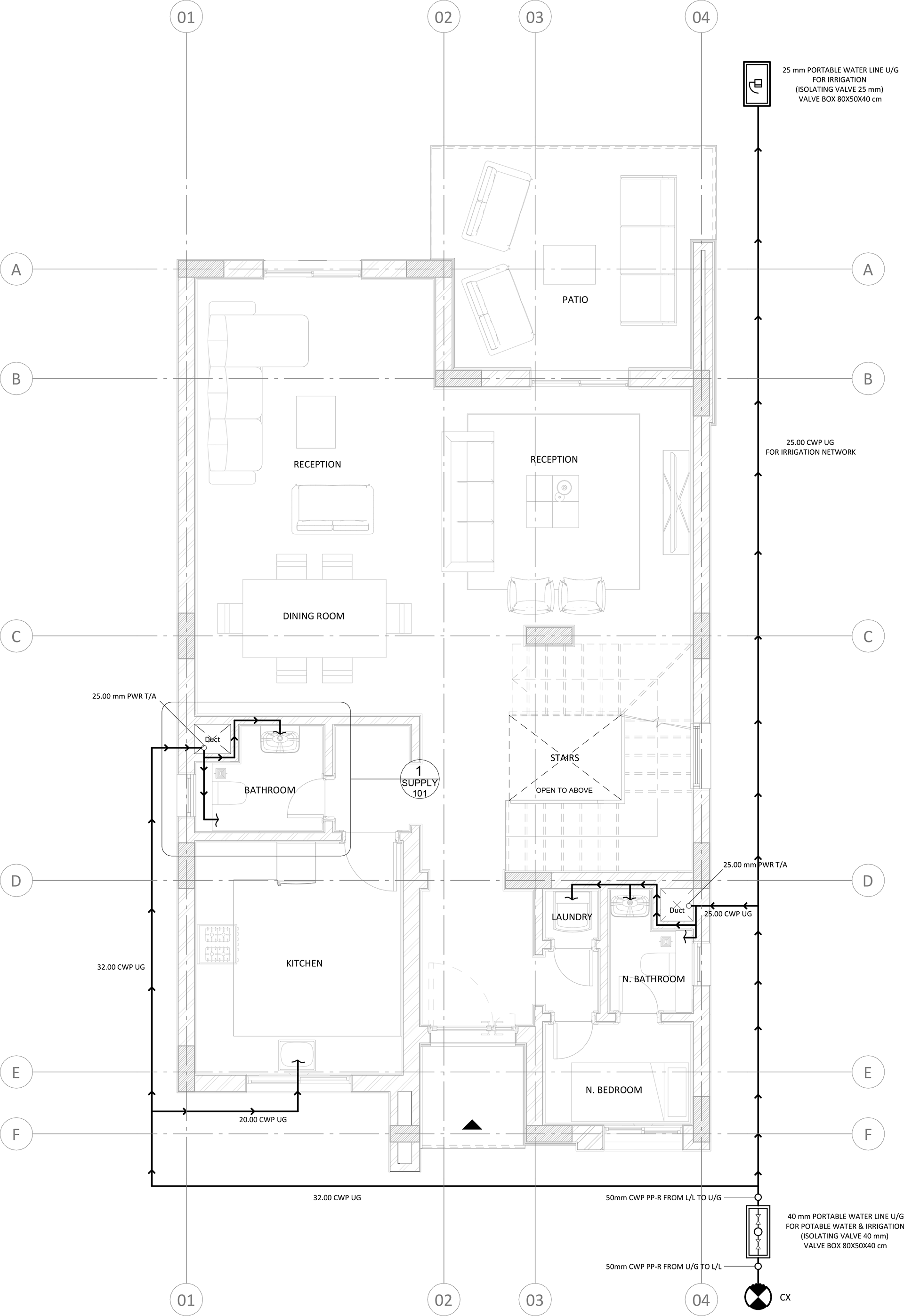

Ground Floor Supply Plan

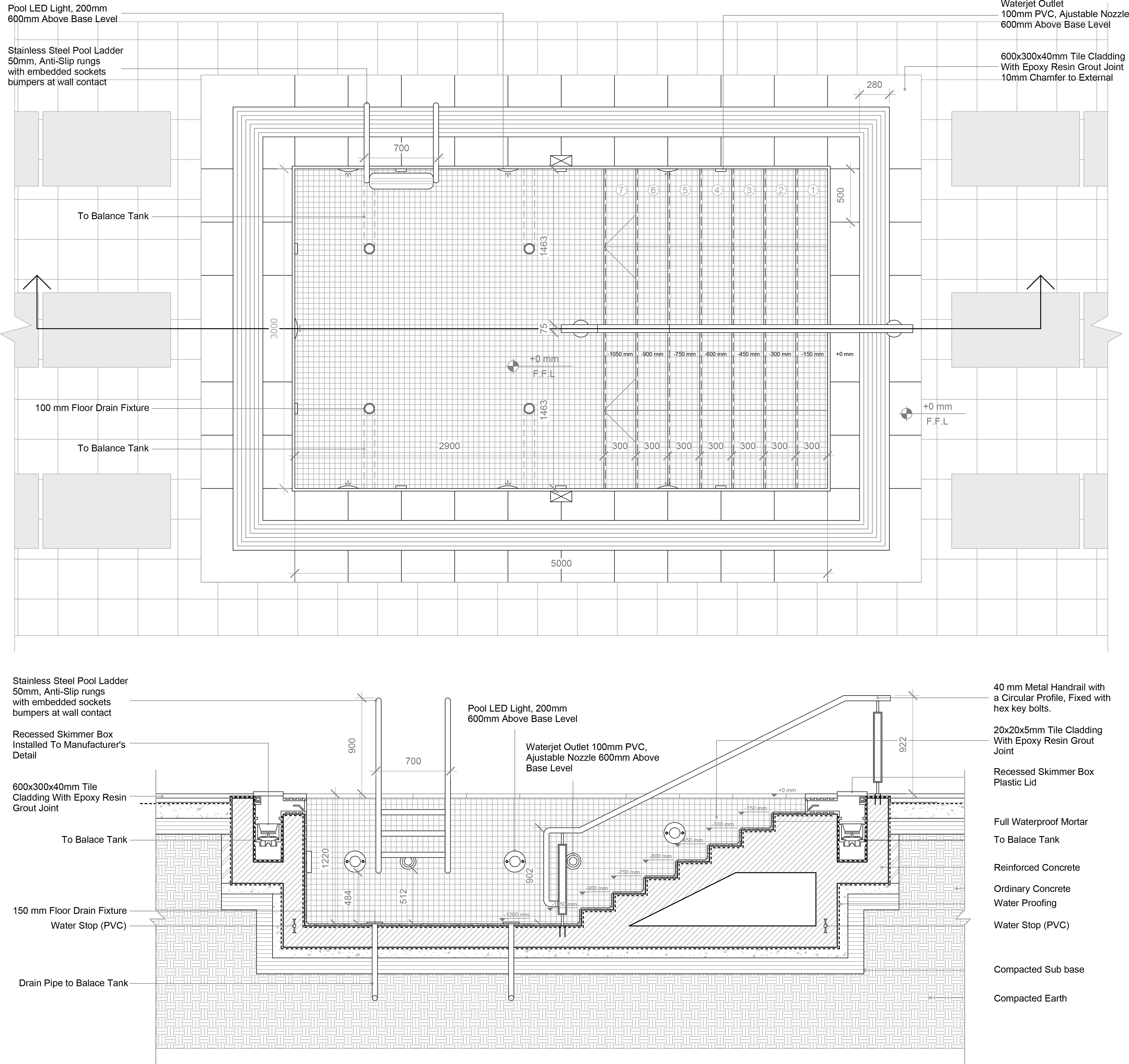

Pool Detail Drawings

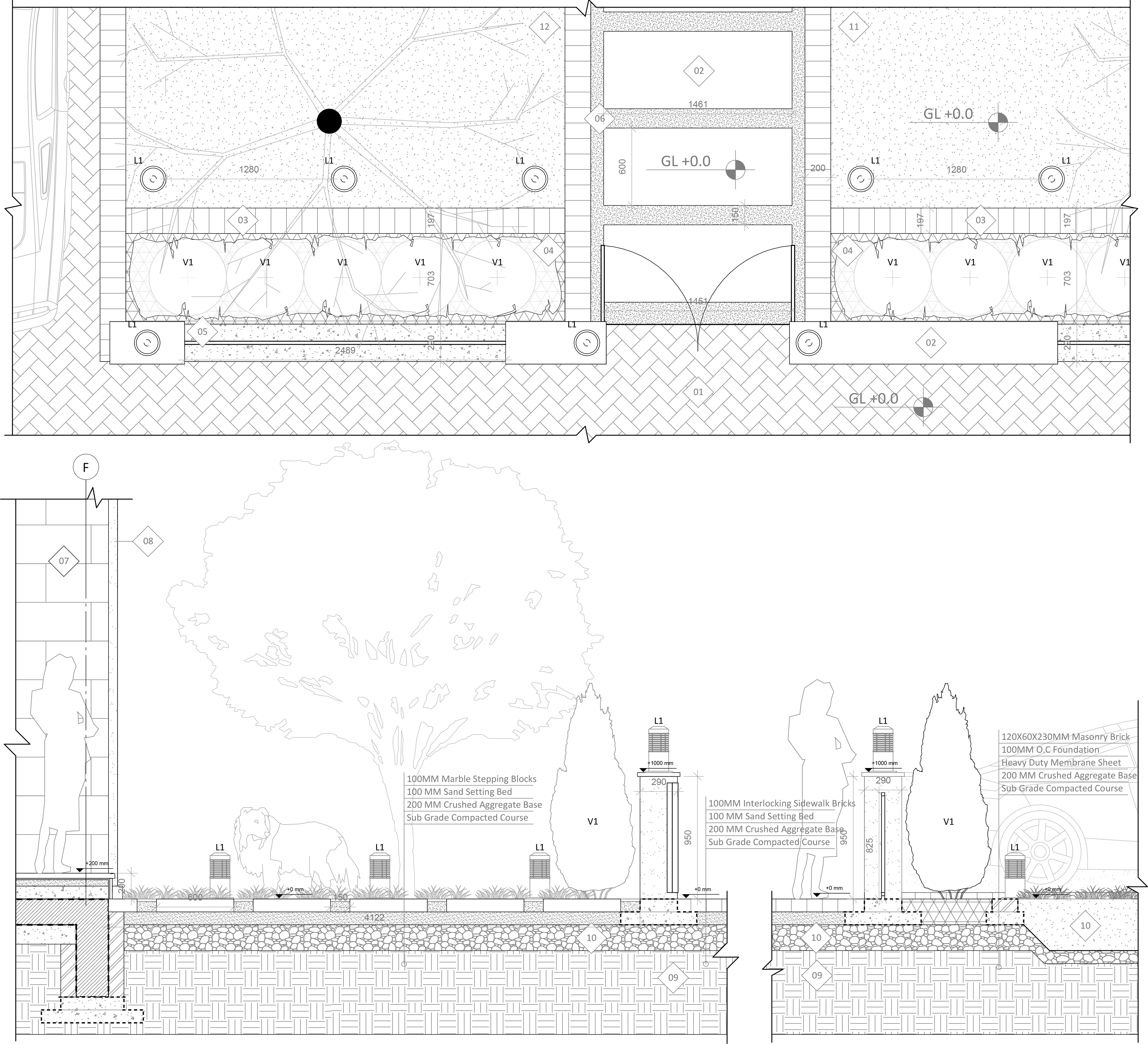

Landscape Detail Drawings
